Polishing Finger Bit

Share to
微信
新浪微博
QQ

分享到微信

×
Details

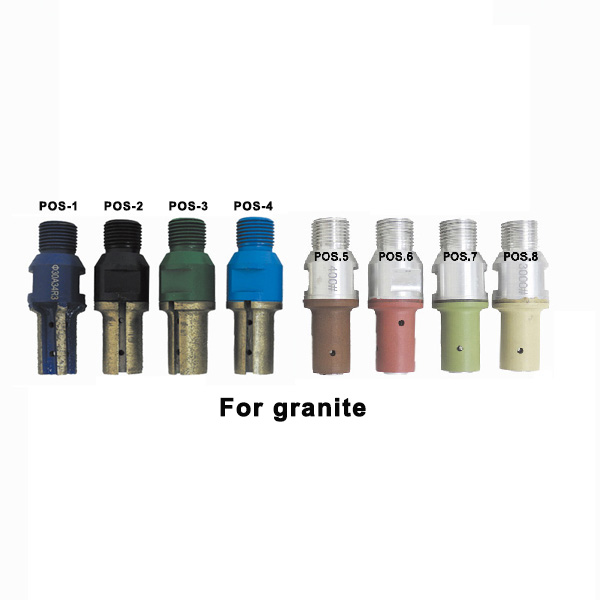

1304 Granite Polishing Finger Bit
Item# Stone
edge code		 Diameter Thickness POS No. Type Connecting Picture Stone profiling shape
mm mm

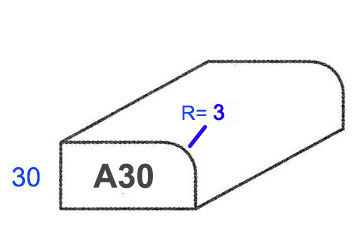

1304-A301 A30 30 30 1 Metal  segmented 1/2gas

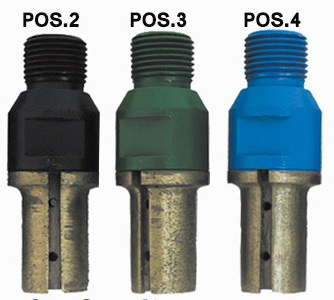

1304-A302 A30 30 30 2 Metal  continuous 1/2gas
1304-A303 A30 30 30 3 Metal  continuous 1/2gas
1304-A304 A30 30 30 4 Metal  continuous 1/2gas

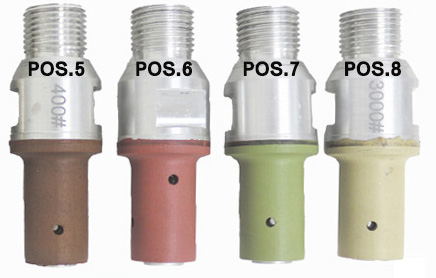

1304-A305 A30 30 30 5 Resin 1/2gas
1304-A306 A30 30 30 6 Resin 1/2gas
1304-A307 A30 30 30 7 Resin 1/2gas
1304-A308 A30 30 30 8 Resin 1/2gas

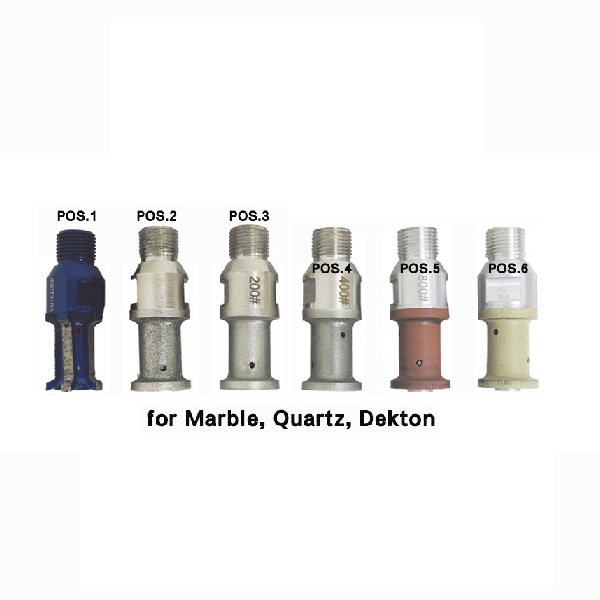

1305 Marble Polishing Finger Bit
Item# Stone
edge code		 Diameter Thickness POS No. Type Connecting Picture Stone profiling shape
mm mm

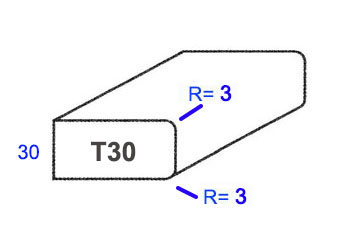

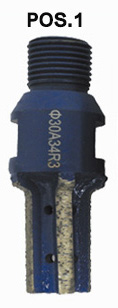

1305-T301 T30 30 30 1 Metal  segmented 1/2gas

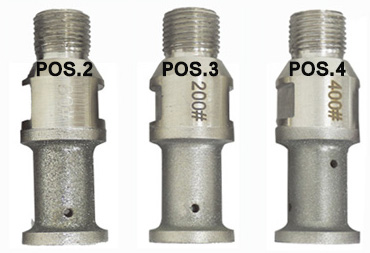

1305-T302 T30 30 30 2 Metal  electroplated 1/2gas
1305-T303 T30 30 30 3 Metal  electroplated 1/2gas
1305-T304 T30 30 30 4 Resin 1/2gas
1305-T305 T30 30 30 5 Resin 1/2gas
1305-T306 T30 30 30 6 Resin 1/2gas
Multi-purpose, can also be used for quartz or Dekton.

Polishing Finger Bit Polishing Finger Bit Polishing Finger Bit
Polishing Finger Bit
Polishing Finger Bit
Polishing Finger Bit

Polishing Finger Bit

Share to
微信
新浪微博
QQ

分享到微信

×
For profiling and polishing Granite, Marble, Quartz, Dekton on CNC profiling machine.
High efficiency, Precise shape, Durable.
Smart, high cost performance.
Vacuum Brazed Finger Bit
Details

  

1304 Granite Polishing Finger Bit
Item# Stone
edge code		 Diameter Thickness POS No. Type Connecting Picture Stone profiling shape
mm mm
1304-A301 A30 30 30 1 Metal  segmented 1/2gas
1304-A302 A30 30 30 2 Metal  continuous 1/2gas
1304-A303 A30 30 30 3 Metal  continuous 1/2gas
1304-A304 A30 30 30 4 Metal  continuous 1/2gas
1304-A305 A30 30 30 5 Resin 1/2gas
1304-A306 A30 30 30 6 Resin 1/2gas
1304-A307 A30 30 30 7 Resin 1/2gas
1304-A308 A30 30 30 8 Resin 1/2gas






























1305 Marble Polishing Finger Bit
Item# Stone
edge code		 Diameter Thickness POS No. Type Connecting Picture Stone profiling shape
mm mm
1305-T301 T30 30 30 1 Metal  segmented 1/2gas
1305-T302 T30 30 30 2 Metal  electroplated 1/2gas
1305-T303 T30 30 30 3 Metal  electroplated 1/2gas
1305-T304 T30 30 30 4 Resin 1/2gas
1305-T305 T30 30 30 5 Resin 1/2gas
1305-T306 T30 30 30 6 Resin 1/2gas
Multi-purpose, can also be used for quartz or Dekton.
