ALA Diamond Tools
ALA Diamond Tools
ALA Diamond Tools

Metal Turbo Cup Wheel

Share to
微信
新浪微博
QQ

分享到微信

×
Details

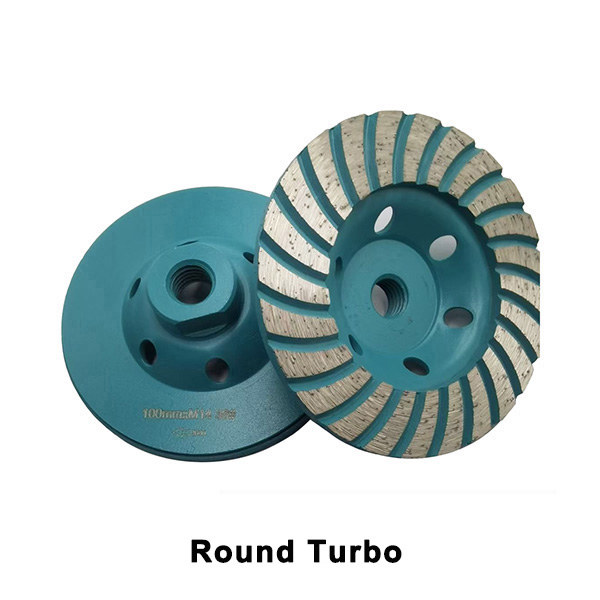

0501 Metal Round Turbo Cup Wheel
Item# Diameter Connecting Thickness
(mm)		 Grit
number		 Picture
Inch mm
0501-4030 4 100 5/8"-11 5 30#
0501-4050 4 100 5/8"-11 5 50#
0501-4060 4 100 5/8"-11 5 60#
0501-4080 4 100 5/8"-11 5 80#
0501-4100 4 100 5/8"-11 5 100#
0501-4120 4 100 5/8"-11 5 120#
0501-4150 4 100 5/8"-11 5 150#
0501-4200 4 100 5/8"-11 5 200#
Size available: 100mm, 125mm, 150mm, 180mm      Other connecting: M14, 20mm, 22.23mm.

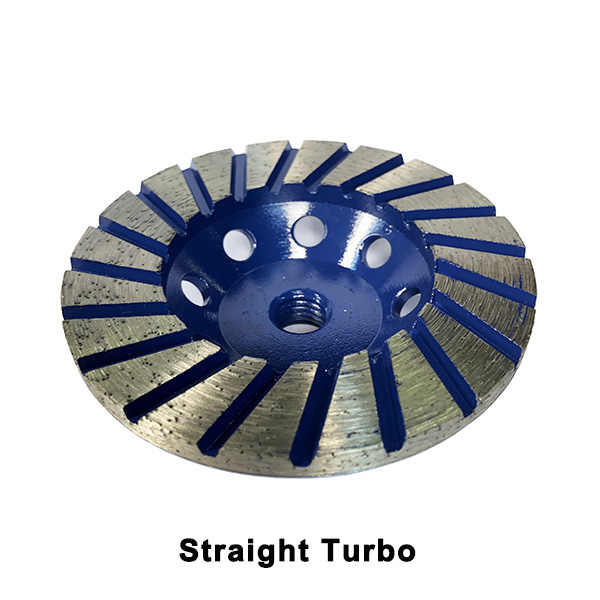

0502 Metal Straight Turbo Cup Wheel
Item# Diameter Connecting Thickness
(mm)		 Grit
number		 Picture
Inch mm
0502-4030 4 100 5/8"-11 5 30#
0502-4050 4 100 5/8"-11 5 50#
0502-4060 4 100 5/8"-11 5 60#
0502-4080 4 100 5/8"-11 5 80#
0502-4100 4 100 5/8"-11 5 100#
0502-4120 4 100 5/8"-11 5 120#
0502-4150 4 100 5/8"-11 5 150#
0502-4200 4 100 5/8"-11 5 200#
Size available: 100mm, 125mm, 150mm, 180mm      Other connecting: M14, 20mm, 22.23mm.

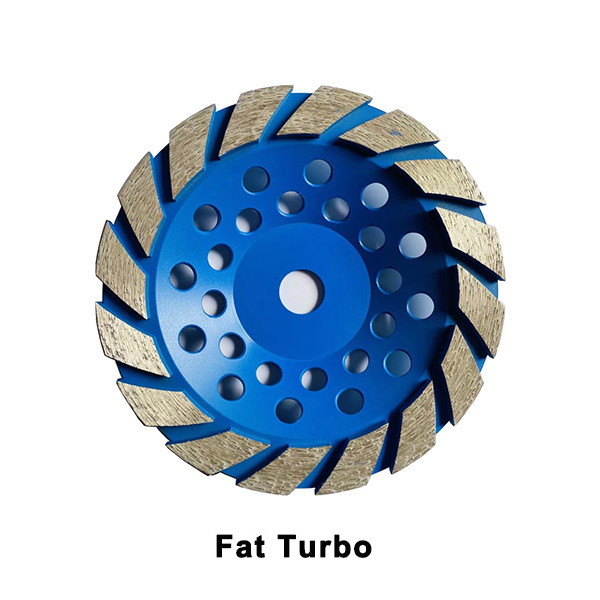

0503 Metal Fat Turbo Cup Wheel
Item# Diameter Connecting Thickness
(mm)		 Grit
number		 Picture
Inch mm
0503-4030 4 100 5/8"-11 5 30#
0503-4050 4 100 5/8"-11 5 50#
0503-4060 4 100 5/8"-11 5 60#
0503-4080 4 100 5/8"-11 5 80#
0503-4100 4 100 5/8"-11 5 100#
0503-4120 4 100 5/8"-11 5 120#
0503-4150 4 100 5/8"-11 5 150#
0503-4200 4 100 5/8"-11 5 200#
Size available: 100mm, 125mm, 150mm, 180mm      Other connecting: M14, 20mm, 22.23mm.

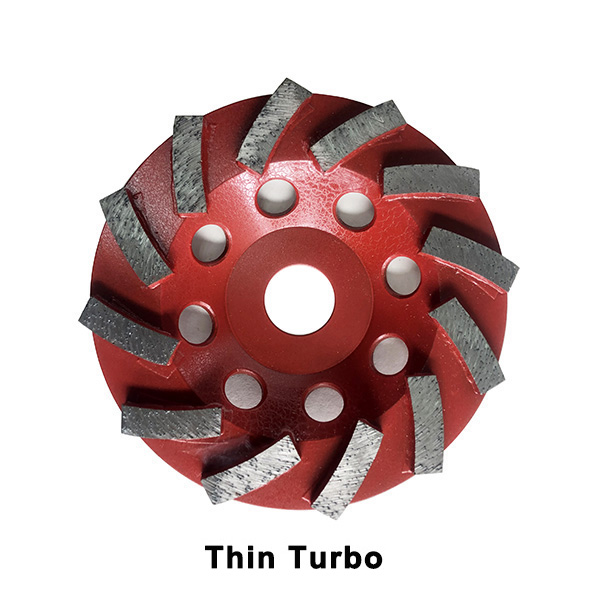

0504 Metal Thin Turbo Cup Wheel
Item# Diameter Connecting Thickness
(mm)		 Grit
number		 Picture
Inch mm
0504-4030 4 100 5/8"-11 8 30#
0504-4050 4 100 5/8"-11 8 50#
0504-4060 4 100 5/8"-11 8 60#
0504-4080 4 100 5/8"-11 8 80#
0504-4100 4 100 5/8"-11 8 100#
0504-4120 4 100 5/8"-11 8 120#
0504-4150 4 100 5/8"-11 8 150#
0504-4200 4 100 5/8"-11 8 200#
Size available: 100mm, 125mm, 150mm, 180mm      Other connecting: M14, 20mm, 22.23mm.

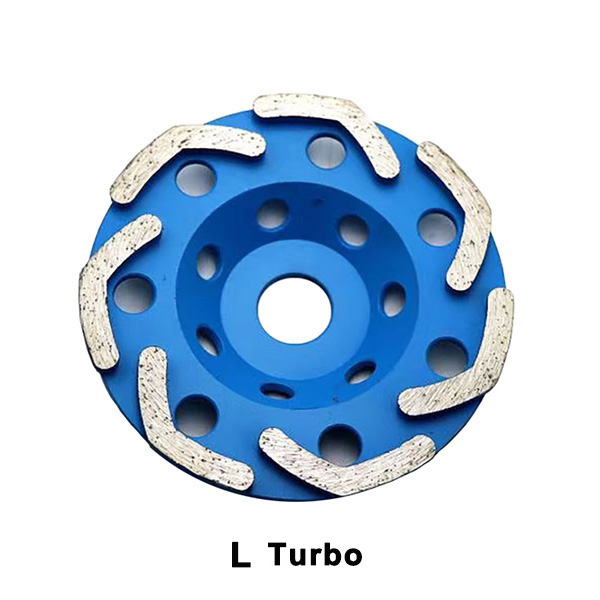

0505 Metal L Turbo Cup Wheel
Item# Diameter Connecting Thickness
(mm)		 Grit
number		 Picture
Inch mm
0505-4030 4 100 5/8"-11 5 30#
0505-4050 4 100 5/8"-11 5 50#
0505-4060 4 100 5/8"-11 5 60#
0505-4080 4 100 5/8"-11 5 80#
0505-4100 4 100 5/8"-11 5 100#
0505-4120 4 100 5/8"-11 5 120#
0505-4150 4 100 5/8"-11 5 150#
0505-4200 4 100 5/8"-11 5 200#
Size available: 100mm, 125mm, 150mm, 180mm      Other connecting: M14, 20mm, 22.23mm.

Metal Turbo Cup Wheel Metal Turbo Cup Wheel Metal Turbo Cup Wheel Metal Turbo Cup Wheel Metal Turbo Cup Wheel
Metal Turbo Cup Wheel
Metal Turbo Cup Wheel
Metal Turbo Cup Wheel
Metal Turbo Cup Wheel
Metal Turbo Cup Wheel

Metal Turbo Cup Wheel

Share to
微信
新浪微博
QQ

分享到微信

×
Sharp, Aggresive, Durable.
Application: Granite, Marble, Quartz, Concrete, Sandstone.
For grinder or floor polishing machine.
Alum Turbo Cup Wheel
Details

  

0501 Metal Round Turbo Cup Wheel
Item# Diameter Connecting Thickness
(mm)		 Grit
number		 Picture
Inch mm
0501-4030 4 100 5/8"-11 5 30#
0501-4050 4 100 5/8"-11 5 50#
0501-4060 4 100 5/8"-11 5 60#
0501-4080 4 100 5/8"-11 5 80#
0501-4100 4 100 5/8"-11 5 100#
0501-4120 4 100 5/8"-11 5 120#
0501-4150 4 100 5/8"-11 5 150#
0501-4200 4 100 5/8"-11 5 200#
Size available: 100mm, 125mm, 150mm, 180mm      Other connecting: M14, 20mm, 22.23mm.




















0502 Metal Straight Turbo Cup Wheel
Item# Diameter Connecting Thickness
(mm)		 Grit
number		 Picture
Inch mm
0502-4030 4 100 5/8"-11 5 30#
0502-4050 4 100 5/8"-11 5 50#
0502-4060 4 100 5/8"-11 5 60#
0502-4080 4 100 5/8"-11 5 80#
0502-4100 4 100 5/8"-11 5 100#
0502-4120 4 100 5/8"-11 5 120#
0502-4150 4 100 5/8"-11 5 150#
0502-4200 4 100 5/8"-11 5 200#
Size available: 100mm, 125mm, 150mm, 180mm      Other connecting: M14, 20mm, 22.23mm.




















0503 Metal Fat Turbo Cup Wheel
Item# Diameter Connecting Thickness
(mm)		 Grit
number		 Picture
Inch mm
0503-4030 4 100 5/8"-11 5 30#
0503-4050 4 100 5/8"-11 5 50#
0503-4060 4 100 5/8"-11 5 60#
0503-4080 4 100 5/8"-11 5 80#
0503-4100 4 100 5/8"-11 5 100#
0503-4120 4 100 5/8"-11 5 120#
0503-4150 4 100 5/8"-11 5 150#
0503-4200 4 100 5/8"-11 5 200#
Size available: 100mm, 125mm, 150mm, 180mm      Other connecting: M14, 20mm, 22.23mm.




















0504 Metal Thin Turbo Cup Wheel
Item# Diameter Connecting Thickness
(mm)		 Grit
number		 Picture
Inch mm
0504-4030 4 100 5/8"-11 8 30#
0504-4050 4 100 5/8"-11 8 50#
0504-4060 4 100 5/8"-11 8 60#
0504-4080 4 100 5/8"-11 8 80#
0504-4100 4 100 5/8"-11 8 100#
0504-4120 4 100 5/8"-11 8 120#
0504-4150 4 100 5/8"-11 8 150#
0504-4200 4 100 5/8"-11 8 200#
Size available: 100mm, 125mm, 150mm, 180mm      Other connecting: M14, 20mm, 22.23mm.




















0505 Metal L Turbo Cup Wheel
Item# Diameter Connecting Thickness
(mm)		 Grit
number		 Picture
Inch mm
0505-4030 4 100 5/8"-11 5 30#
0505-4050 4 100 5/8"-11 5 50#
0505-4060 4 100 5/8"-11 5 60#
0505-4080 4 100 5/8"-11 5 80#
0505-4100 4 100 5/8"-11 5 100#
0505-4120 4 100 5/8"-11 5 120#
0505-4150 4 100 5/8"-11 5 150#
0505-4200 4 100 5/8"-11 5 200#
Size available: 100mm, 125mm, 150mm, 180mm      Other connecting: M14, 20mm, 22.23mm.
