Dry Cutting Blades

Share to
微信
新浪微博
QQ

分享到微信

×
Details

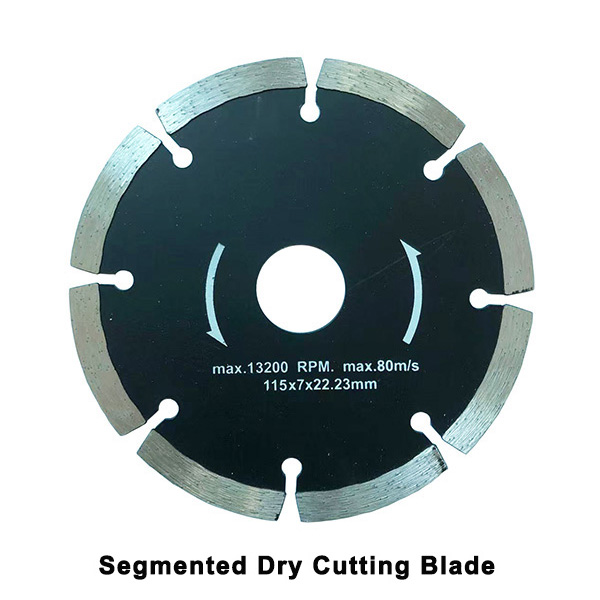

0101 Segmented Dry Cutting Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0101-105 4 105 22.23 1.8  7
0101-115 4.5 115 22.23 1.8  7
0101-125 5 125 22.23 2.0  7
0101-150 6 150 22.23 2.0  7
0101-180 7 180 22.23 2.2  7
0101-200 8 200 22.23 2.4  7
0101-230 9 230 22.23 2.4  7
Application: Granite, Ceramic, Concrete.

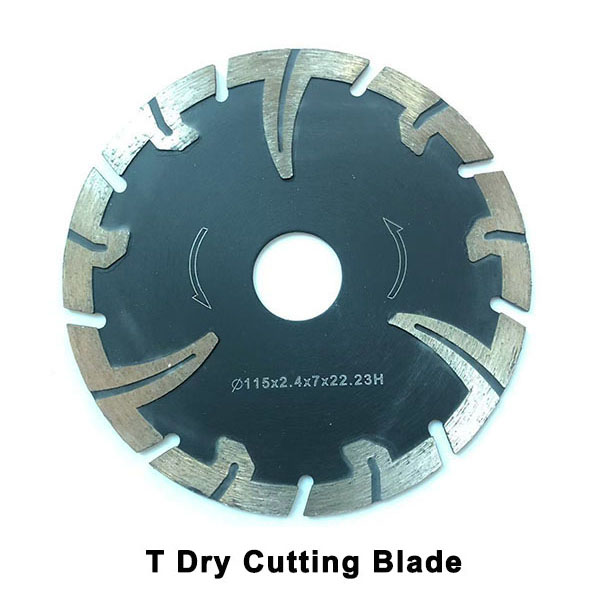

0102 T Dry Cutting Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0102-105 4 105 22.23 2.2  7
0102-115 4.5 115 22.23 2.4  7
0102-125 5 125 22.23 2.4  7
0102-150 6 150 22.23 2.4  7
0102-180 7 180 22.23 2.6  7
0102-200 8 200 22.23 2.6  7
0102-230 9 230 22.23 2.8  7
Application: Granite, Concrete.

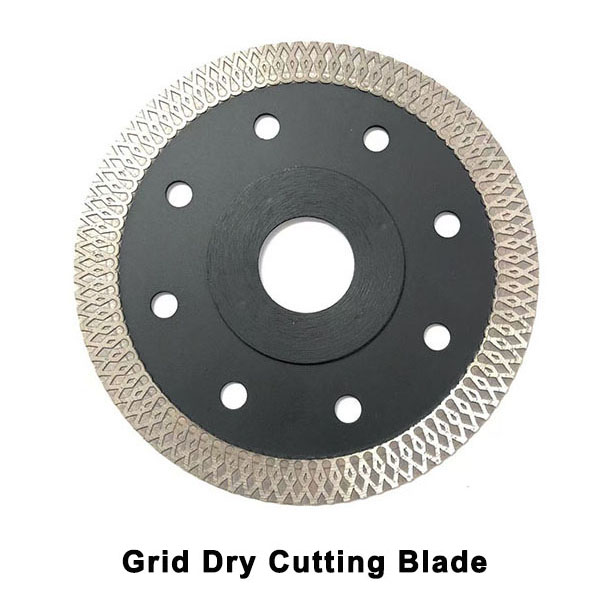

0103 Grid Dry Cutting Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0103-105 4 105 22.23 1.2  10
0103-115 4.5 115 22.23 1.2  10
0103-125 5 125 22.23 1.4  10
0103-150 6 150 22.23 1.6  10
0103-180 7 180 22.23 1.8  10
0103-200 8 200 22.23 1.8  10
0103-230 9 230 22.23 2.0  10
Application: Granite, Marble, Quartz, Dekton, Ceramic

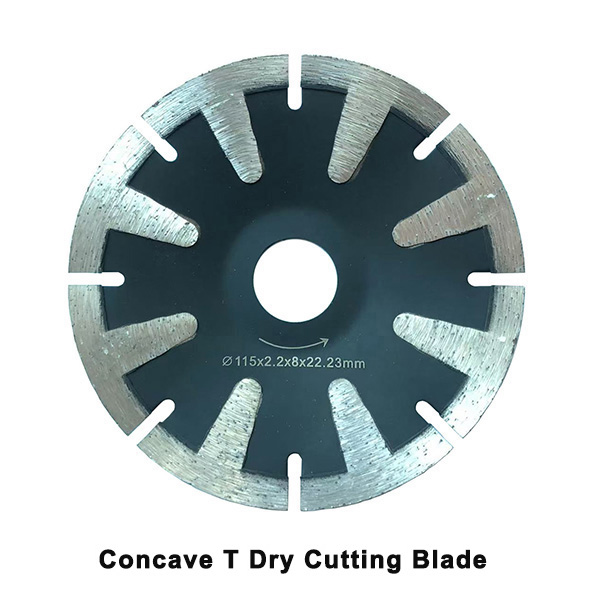

0104 Concave T Dry Cutting Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0104-115 4.5 115 22.23 2.2  8
0104-125 5 125 22.23 2.4  8
0104-150 6 150 22.23 2.6  8
0104-180 7 180 22.23 2.6  8
Application: Granite, Marble, Quartz, Dekton, Concrete.

Dry Cutting Blades Dry Cutting Blades Dry Cutting Blades Dry Cutting Blades
Dry Cutting Blades
Dry Cutting Blades
Dry Cutting Blades
Dry Cutting Blades

Dry Cutting Blades

Share to
微信
新浪微博
QQ

分享到微信

×
Hot pressed, durable, Sharp, fast and smooth cutting, No chipping.
Application: Granite, Marble, Quartz, Dekton, Ceramic, Concrete.
For manual cutting machine.
Turbo Blades
Details

  

0101 Segmented Dry Cutting Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0101-105 4 105 22.23 1.8  7
0101-115 4.5 115 22.23 1.8  7
0101-125 5 125 22.23 2.0  7
0101-150 6 150 22.23 2.0  7
0101-180 7 180 22.23 2.2  7
0101-200 8 200 22.23 2.4  7
0101-230 9 230 22.23 2.4  7
Application: Granite, Ceramic, Concrete.




















0102 T Dry Cutting Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0102-105 4 105 22.23 2.2  7
0102-115 4.5 115 22.23 2.4  7
0102-125 5 125 22.23 2.4  7
0102-150 6 150 22.23 2.4  7
0102-180 7 180 22.23 2.6  7
0102-200 8 200 22.23 2.6  7
0102-230 9 230 22.23 2.8  7
Application: Granite, Concrete.





















0103 Grid Dry Cutting Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0103-105 4 105 22.23 1.2  10
0103-115 4.5 115 22.23 1.2  10
0103-125 5 125 22.23 1.4  10
0103-150 6 150 22.23 1.6  10
0103-180 7 180 22.23 1.8  10
0103-200 8 200 22.23 1.8  10
0103-230 9 230 22.23 2.0  10
Application: Granite, Marble, Quartz, Dekton, Ceramic





















0104 Concave T Dry Cutting Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0104-115 4.5 115 22.23 2.2  8
0104-125 5 125 22.23 2.4  8
0104-150 6 150 22.23 2.6  8
0104-180 7 180 22.23 2.6  8
Application: Granite, Marble, Quartz, Dekton, Concrete.
