Turbo Blades

Share to
微信
新浪微博
QQ

分享到微信

×
Details

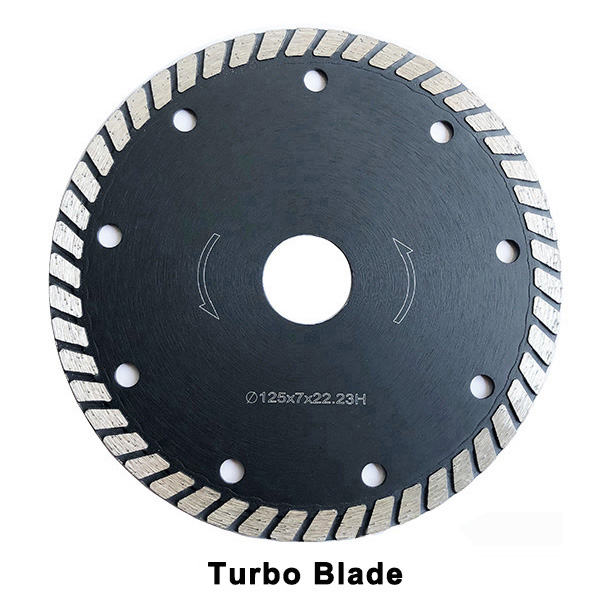

0105 Turbo Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0105-105 4 105 22.23 2.0  7
0105-115 4.5 115 22.23 2.2 7
0105-125 5 125 22.23 2.2 7
0105-150 6 150 22.23 2.4 7
0105-180 7 180 22.23 2.4 7
0105-200 8 200 22.23 2.6  7
0105-230 9 230 22.23 2.6 7
Application: Granite.

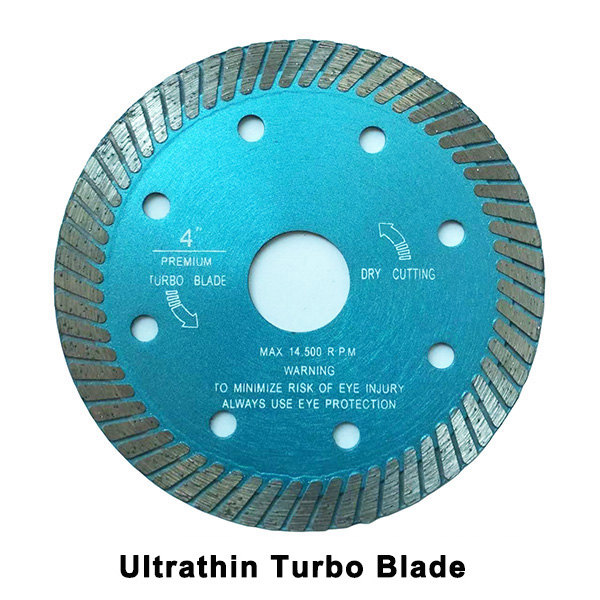

0106 Ultrathin Turbo Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0106-105 4 105 22.23 1.2 10
0106-115 4.5 115 22.23 1.3  10
0106-125 5 125 22.23 1.3  10
0106-150 6 150 22.23 1.8  10
0106-180 7 180 22.23 1.8  10
0106-200 8 200 22.23 2.0 10
0106-230 9 230 22.23 2.0 10
Application: Granite, Marble, Ceramic, Quartz, Dekton.

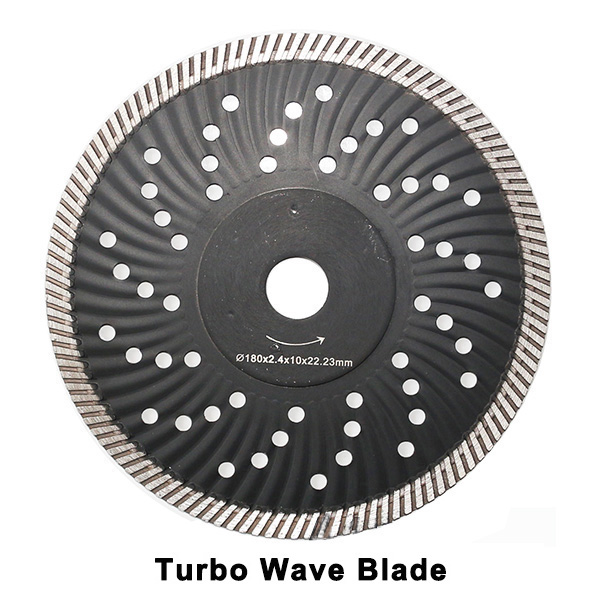

0107 Turbo Wave Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0107-105 4 105 22.23 2.2  7
0107-115 4.5 115 22.23 2.5  7
0107-125 5 125 22.23 2.5  7
0107-150 6 150 22.23 3.0  7
0107-180 7 180 22.23 3.0  7
0107-200 8 200 22.23 3.2  7
0107-230 9 230 22.23 3.2  7
Application: Granite, Marble,  Quartz, Dekton.

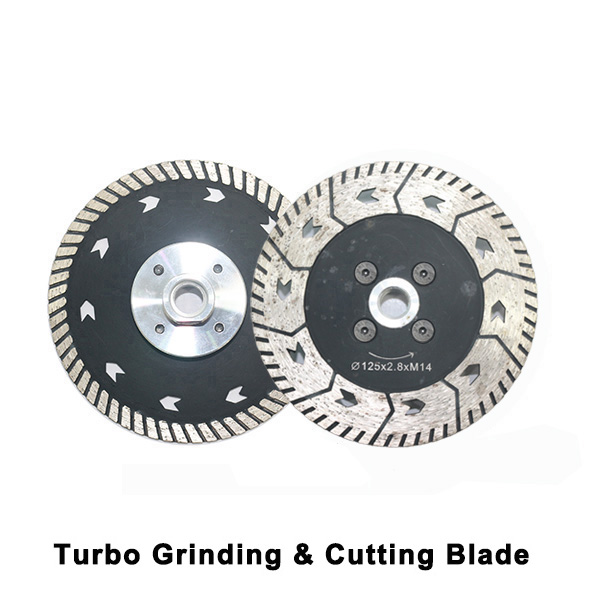

0108 Turbo Grinding / Cutting Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0108-115 4.5 115 22.23 3.5  8
0108-125 5 125 22.23 3.5  8
0108-150 6 150 22.23 3.5  8
0108-180 7 180 22.23 3.5  8
0108-200 8 200 22.23 3.5  8
0108-230 9 230 22.23 3.5  8
Application: Granite, Marble, Quartz, Dekton.

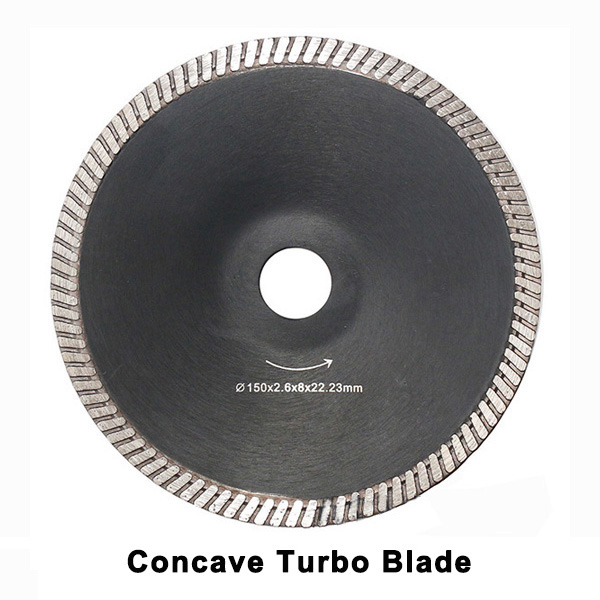

0109 Concave Turbo Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0109-105 4 105 22.23 2.2  8
0109-115 4.5 115 22.23 2.4  8
0109-125 5 125 22.23 2.4  8
0109-150 6 150 22.23 2.4  8
0109-180 7 180 22.23 2.6  8
0109-230 9 230 22.23 3.0  8
Application: Granite, Marble, Quartz, Dekton.

Turbo Blades Turbo Blades Turbo Blades Turbo Blades Turbo Blades
Turbo Blades
Turbo Blades
Turbo Blades
Turbo Blades
Turbo Blades

Turbo Blades

Share to
微信
新浪微博
QQ

分享到微信

×
Hot pressed, durable, Sharp, fast and smooth cutting, No chipping.
Ultrathin body, small cutting gap.
Application: Granite, Marble, Ceramic, Quartz, Dekton.
For manual cutting machine.
Dry Cutting Blades
Electroplated Blades
Details

  

0105 Turbo Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0105-105 4 105 22.23 2.0  7
0105-115 4.5 115 22.23 2.2 7
0105-125 5 125 22.23 2.2 7
0105-150 6 150 22.23 2.4 7
0105-180 7 180 22.23 2.4 7
0105-200 8 200 22.23 2.6  7
0105-230 9 230 22.23 2.6 7
Application: Granite.




















0106 Ultrathin Turbo Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0106-105 4 105 22.23 1.2 10
0106-115 4.5 115 22.23 1.3  10
0106-125 5 125 22.23 1.3  10
0106-150 6 150 22.23 1.8  10
0106-180 7 180 22.23 1.8  10
0106-200 8 200 22.23 2.0 10
0106-230 9 230 22.23 2.0 10
Application: Granite, Marble, Ceramic, Quartz, Dekton.




















0107 Turbo Wave Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0107-105 4 105 22.23 2.2  7
0107-115 4.5 115 22.23 2.5  7
0107-125 5 125 22.23 2.5  7
0107-150 6 150 22.23 3.0  7
0107-180 7 180 22.23 3.0  7
0107-200 8 200 22.23 3.2  7
0107-230 9 230 22.23 3.2  7
Application: Granite, Marble,  Quartz, Dekton.




















0108 Turbo Grinding / Cutting Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0108-115 4.5 115 22.23 3.5  8
0108-125 5 125 22.23 3.5  8
0108-150 6 150 22.23 3.5  8
0108-180 7 180 22.23 3.5  8
0108-200 8 200 22.23 3.5  8
0108-230 9 230 22.23 3.5  8
Application: Granite, Marble, Quartz, Dekton.


















0109 Concave Turbo Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0109-105 4 105 22.23 2.2  8
0109-115 4.5 115 22.23 2.4  8
0109-125 5 125 22.23 2.4  8
0109-150 6 150 22.23 2.4  8
0109-180 7 180 22.23 2.6  8
0109-230 9 230 22.23 3.0  8
Application: Granite, Marble, Quartz, Dekton.
