Details

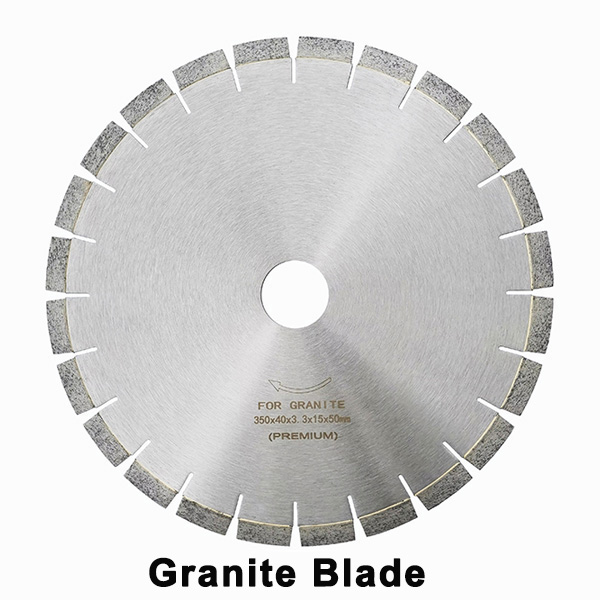

0201 Granite Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0201-1215 12 300 50/60 3.2  15
0201-1420 14 350 50/60 3.2  20
0201-1620 16 400 50/60 3.6  20
0201-2020 20 500 50/60 4.2  20
0201-2420 24 600 50/60 4.8  20
0201-2820 28 700 50/60 5.2  20
0201-3220 32 800 50/60 5.8  20
Other specification can be ordered

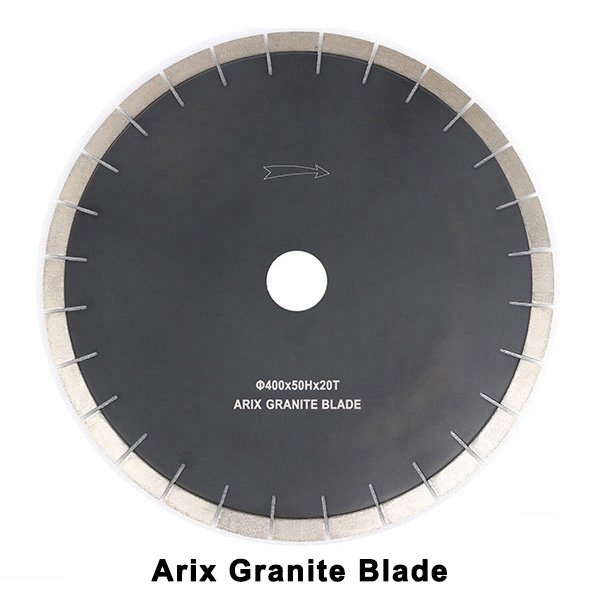

0202 Arix Granite Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0202-1215 12 300 50/60 3.2  15
0202-1420 14 350 50/60 3.2  20
0202-1620 16 400 50/60 3.6  20
0202-2020 20 500 50/60 4.2  20
0202-2420 24 600 50/60 4.8  20
0202-2820 28 700 50/60 5.2  20
0202-3220 32 800 50/60 5.8  20
Normal body with arix segments

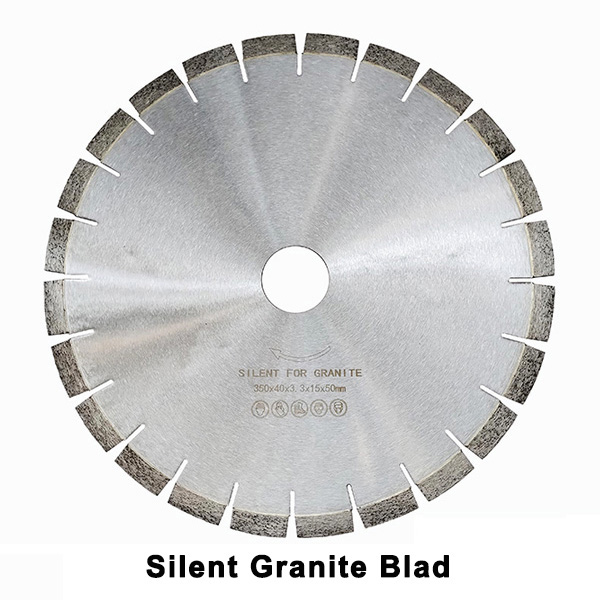

0203 Silent Granite Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0203-1215 12 300 50/60 3.2  15
0203-1420 14 350 50/60 3.2  20
0203-1620 16 400 50/60 3.6  20
0203-2020 20 500 50/60 4.2  20
0203-2420 24 600 50/60 4.8  20
0203-2820 28 700 50/60 5.2  20
0203-3220 32 800 50/60 5.8  20
Other specification can be ordered

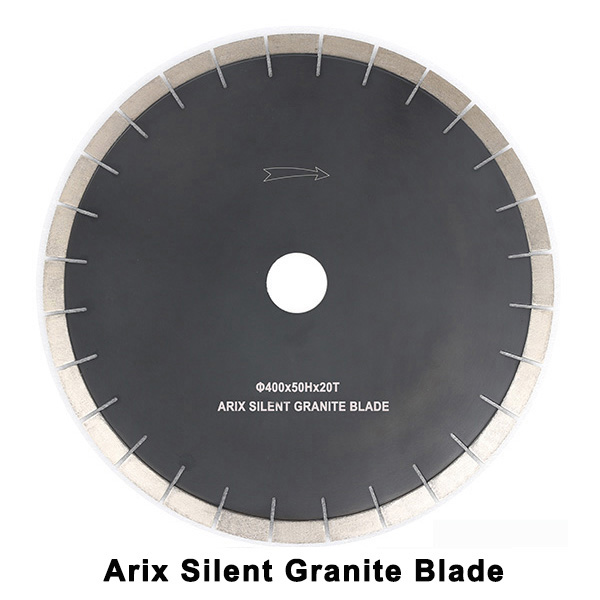

0204 Arix Silent Granite Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0204-1215 12 300 50/60 3.2  15
0204-1420 14 350 50/60 3.2  20
0204-1620 16 400 50/60 3.6  20
0204-2020 20 500 50/60 4.2  20
0204-2420 24 600 50/60 4.8  20
0204-2820 28 700 50/60 5.2  20
0204-3220 32 800 50/60 5.8  20
Silent core with arix segments

Granite Blade Granite Blade Granite Blade Granite Blade Granite Blade
Granite Blade
Granite Blade
Granite Blade
Granite Blade
Granite Blade

Granite Blade

Share to
微信
新浪微博
QQ

分享到微信

×
Fast and clean cutting, Durable, No chipping.
Normal core and silent core can be ordered.
Arix segments is more sharper and durable than normal segments.
Electroplated Blades
Marble Blade
Details

  

0201 Granite Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0201-1215 12 300 50/60 3.2  15
0201-1420 14 350 50/60 3.2  20
0201-1620 16 400 50/60 3.6  20
0201-2020 20 500 50/60 4.2  20
0201-2420 24 600 50/60 4.8  20
0201-2820 28 700 50/60 5.2  20
0201-3220 32 800 50/60 5.8  20
Other specification can be ordered






















0202 Arix Granite Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0202-1215 12 300 50/60 3.2  15
0202-1420 14 350 50/60 3.2  20
0202-1620 16 400 50/60 3.6  20
0202-2020 20 500 50/60 4.2  20
0202-2420 24 600 50/60 4.8  20
0202-2820 28 700 50/60 5.2  20
0202-3220 32 800 50/60 5.8  20
Normal body with arix segments
























0203 Silent Granite Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0203-1215 12 300 50/60 3.2  15
0203-1420 14 350 50/60 3.2  20
0203-1620 16 400 50/60 3.6  20
0203-2020 20 500 50/60 4.2  20
0203-2420 24 600 50/60 4.8  20
0203-2820 28 700 50/60 5.2  20
0203-3220 32 800 50/60 5.8  20
Other specification can be ordered






















0204 Arix Silent Granite Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0204-1215 12 300 50/60 3.2  15
0204-1420 14 350 50/60 3.2  20
0204-1620 16 400 50/60 3.6  20
0204-2020 20 500 50/60 4.2  20
0204-2420 24 600 50/60 4.8  20
0204-2820 28 700 50/60 5.2  20
0204-3220 32 800 50/60 5.8  20
Silent core with arix segments
