Details

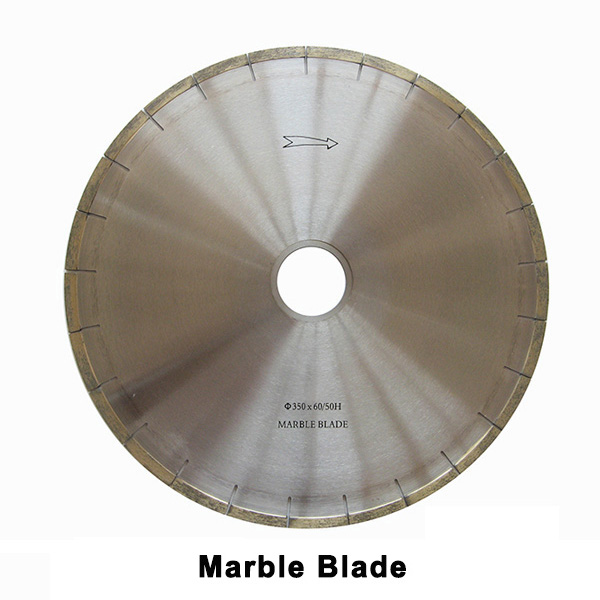

0205 Marble Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0205-1209 12 300 50/60 3.0  9
0205-1409 14 350 50/60 3.0  9
0205-1609 16 400 50/60 3.4  9
0205-2009 20 500 50/60 4.2  9
0205-2409 24 600 50/60 4.8  9
0205-2809 28 700 50/60 5.2  9
0205-3209 32 800 50/60 5.8  9
Other specification can be ordered

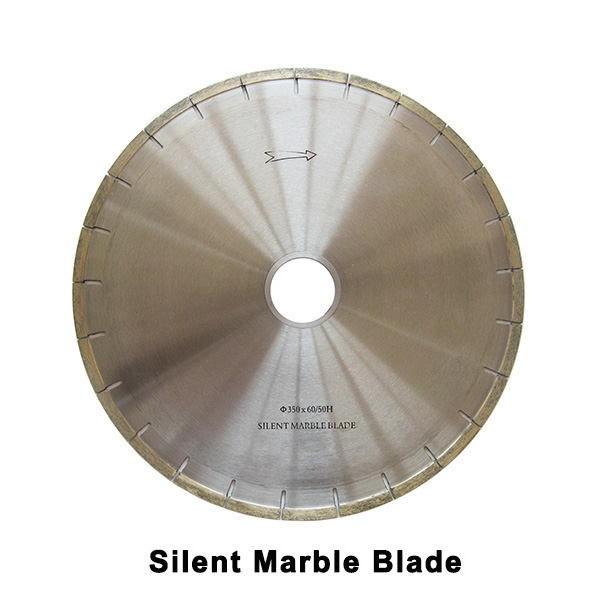

0206 Silent Marble Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0206-1209 12 300 50/60 3.0  9
0206-1408 14 350 50/60 3.0  9
0206-1609 16 400 50/60 3.4  9
0206-2009 20 500 50/60 4.2  9
0206-2409 24 600 50/60 4.8  9
0206-2809 28 700 50/60 5.2  9
0206-3209 32 800 50/60 5.8  9
Other specification can be ordered

Marble Blade Marble Blade
Marble Blade
Marble Blade

Marble Blade

Share to
微信
新浪微博
QQ

分享到微信

×
Specially designed for Marble cutting. Fast, smooth cutting, no chipping.
Better blade continuity and narrow segments gap, supply better sharpness and trimming efficiency.
Normal core and silent core can be ordered.
Granite Blade
Quartz Blade
Details

  

0205 Marble Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0205-1209 12 300 50/60 3.0  9
0205-1409 14 350 50/60 3.0  9
0205-1609 16 400 50/60 3.4  9
0205-2009 20 500 50/60 4.2  9
0205-2409 24 600 50/60 4.8  9
0205-2809 28 700 50/60 5.2  9
0205-3209 32 800 50/60 5.8  9
Other specification can be ordered























0206 Silent Marble Blade
Item# Diameter Bore Thickness Height Picture
inch mm mm mm mm
0206-1209 12 300 50/60 3.0  9
0206-1408 14 350 50/60 3.0  9
0206-1609 16 400 50/60 3.4  9
0206-2009 20 500 50/60 4.2  9
0206-2409 24 600 50/60 4.8  9
0206-2809 28 700 50/60 5.2  9
0206-3209 32 800 50/60 5.8  9
Other specification can be ordered
