Details

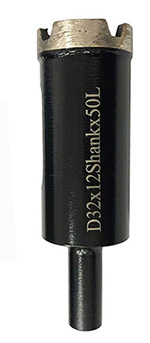

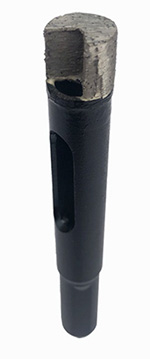

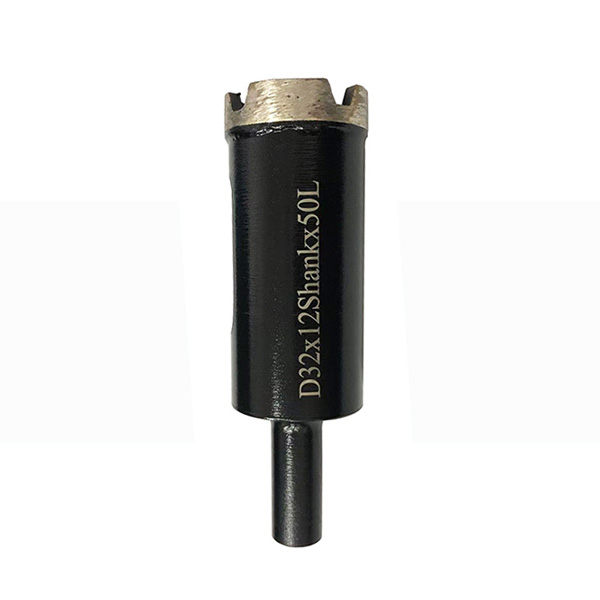

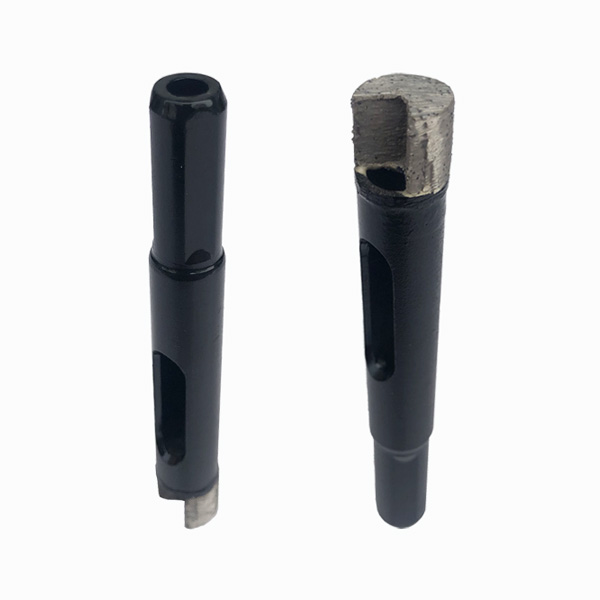

0901 Shank Wet Drilling Bit
Item# Diameter Drilling
Depth
(mm)		 Total
Length
(mm)		 Shank
Diameter
(mm)		 Picture
inch mm
0901-0650 1/4" 6 50 100  10
0901-0850 5/16" 8 50 100
0901-1050 3/8" 10 50 100
0901-1250 1/2" 12 50 100  12
0901-1450 9/16" 14 50 100
0901-1650 5/8" 16 50 100

















0902 Shank Wet Drilling Bit
Item# Diameter Drilling
Depth
(mm)		 Total
Length
(mm)		 Shank
Diameter
(mm)		 Picture
inch mm
0902-2050 3/4" 20 50 100  12
0902-2550 1" 25 50 100
0902-3050 1 3/16" 30 50 100
0902-3250 1 1/4" 32 50 100
0902-3550 1  1/8" 35 50 100
0902-3850 1 1/2" 38 50 100
0902-4050 1 9/16" 40 50 100
0902-5050 2" 50 50 100




















0903 Shank Wet Drilling Bit
Item# Diameter Drilling
Depth
(mm)		 Total
Length
(mm)		 Shank
Diameter
(mm)		 Picture
inch mm
0903-2050 3/4" 20 50 100  12
0903-2550 1" 25 50 100
0903-3050 1 3/16" 30 50 100
0903-3250 1 1/4" 32 50 100
0903-3550 1  1/8" 35 50 100
0903-3850 1 1/2" 38 50 100
0903-4050 1 9/16" 40 50 100
0903-5050 2" 50 50 100
Other specification can be ordered































Shank Wet Drilling Bit Shank Wet Drilling Bit Shank Wet Drilling Bit
Shank Wet Drilling Bit
Shank Wet Drilling Bit
Shank Wet Drilling Bit

Shank Wet Drilling Bit

Share to
微信
新浪微博
QQ

分享到微信

×
Fast, Aggressive drilling, Durable.
Application: Granite, Marble, Quartz, Dekton, Porcelain.
For hand drill or bench drilling machine.
Thread Wet Drilling Bit
Details

  

0901 Shank Wet Drilling Bit
Item# Diameter Drilling
Depth
(mm)		 Total
Length
(mm)		 Shank
Diameter
(mm)		 Picture
inch mm
0901-0650 1/4" 6 50 100  10
0901-0850 5/16" 8 50 100
0901-1050 3/8" 10 50 100
0901-1250 1/2" 12 50 100  12
0901-1450 9/16" 14 50 100
0901-1650 5/8" 16 50 100

















0902 Shank Wet Drilling Bit
Item# Diameter Drilling
Depth
(mm)		 Total
Length
(mm)		 Shank
Diameter
(mm)		 Picture
inch mm
0902-2050 3/4" 20 50 100  12
0902-2550 1" 25 50 100
0902-3050 1 3/16" 30 50 100
0902-3250 1 1/4" 32 50 100
0902-3550 1  1/8" 35 50 100
0902-3850 1 1/2" 38 50 100
0902-4050 1 9/16" 40 50 100
0902-5050 2" 50 50 100




















0903 Shank Wet Drilling Bit
Item# Diameter Drilling
Depth
(mm)		 Total
Length
(mm)		 Shank
Diameter
(mm)		 Picture
inch mm
0903-2050 3/4" 20 50 100  12
0903-2550 1" 25 50 100
0903-3050 1 3/16" 30 50 100
0903-3250 1 1/4" 32 50 100
0903-3550 1  1/8" 35 50 100
0903-3850 1 1/2" 38 50 100
0903-4050 1 9/16" 40 50 100
0903-5050 2" 50 50 100
Other specification can be ordered
